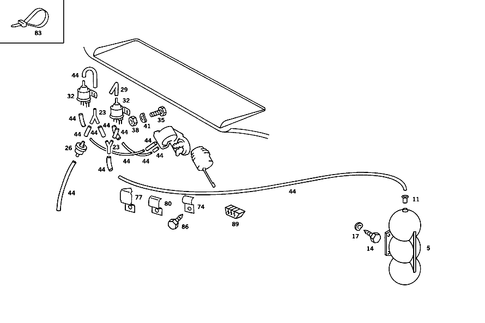

Engine Vacuum Connection and Light Range Regulator for 1985 Mercedes-Benz 380SL
No.
Part # / Description / Price
Price
11
MSRP $4.90
$3.63
14
Tapping Screw
Mercedes-Benz
Mercedes-Benz Description: Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
MSRP $2.00
$1.50
MSRP $2.00
$1.50
20
Switch Mercedes-Benz
Mercedes-Benz Description: Light range regulator;at covering with light rotary switch. Headlamp leveling system 000 800 07 73. Light range adjuster.
26
Check Valve Mercedes-Benz
Mercedes-Benz Description: Y-shape distributor on front panel, left. Heater check valve. Engine compartment,left. At intake manifold.
44
Piping Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: Range of delivery for subsequent installation.
MSRP $4.50
$3.38
MSRP $4.50
$3.38
68
Insulating Tubing Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: FROM CHECK VALVE TO SUPPLY TANK 650 MMInside diameter: 5mmMaterial thickness: 0,6mm. 519 MMInside diameter: 5mmMaterial thickness: 0,6mm. 940 MMInside diameter: 5mmMaterial thickness: 0,6mm. CONTROL VALVE, 245 MMInside diameter: 5mmMaterial thickness: 0,6m ...
MSRP $2.20
$1.63
MSRP $2.20
$1.63
77
80
Clamp Mercedes-Benz
Mercedes-Benz Description: Brake line to fire wall. Lines to cross member at fire wall. Oil pressure gauge line and capillary tube to fire wall. Air conduits to front subframe. On fire wall.
83
MSRP $4.90
$3.63
86
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Bracket to cooling water expansion tank bracketdiameter: 4,2mmthread code letter: r. Protective plate to side memberdiameter: 4,2mmthread code letter: r. BRACKET MOUNTINGDiameter: 4,2mmThread code letter: R. SOLENOID VALVE TO WHEELHOUSEDiameter: 4,2mmThrea ...
89
Rubber Guide Mercedes-Benz
Mercedes-Benz Description: Brake line to fire wall. Fuel line under main floor. Air conduits to front subframe. For fuel pipe and brake line. Lines to frame. Fuel lines on main floor,left. Brake line to side member. For fuel pipe and brake pipe up to chassis 7519994.
MSRP $3.40
$2.50
MSRP $3.40
$2.50
89
Damping Strip Mercedes-Benz
Mercedes-Benz Description: For fuel pipe and brake line. For fuel pipe and brake pipe from chassis 7519995.
MSRP $7.75
$5.75
MSRP $7.75
$5.75
