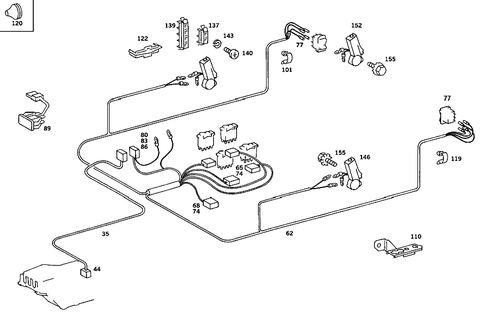

Electric Window Regulator for 1991 Mercedes-Benz 560SEC

5

Wiring Harness

1265408210

Mercedes-Benz

Notes: NO LONGER AVAILABLE
ONLY FOR SWEDEN

Description: Comfort switching,from door contact switch to relay and to diode.

View Details

5

Wiring Harness

1265430026

Mercedes-Benz

Notes: NO LONGER AVAILABLE

Description: Comfort switching,from door contact switch to relay and to diode.

View Details

5

Wiring Harness

1265408110

Mercedes-Benz

Notes: NO LONGER AVAILABLE

Description: Comfort switching,from door contact switch to relay and to diode.

View Details

5

Electric Cable

1265405535

Mercedes-Benz

Notes: NO LONGER AVAILABLE

Description: Comfort switching,from door contact switch to relay and to diode.

View Details

8

Receptacle Housing

013-545-40-28

Mercedes-Benz

Notes: ONLY FOR SWEDEN

View Details

11

Receptacle Housing

126-545-01-28

Mercedes-Benz

Description: Automatic transmission shift-pointincrease relay. 6-pin. Relay for "locking completed" feedback. 6-pin. Engine shut-off relay. 6-pin. Intake manifold heating relay. 6-pole. 6-pin. Relay. 6-pole to 126 820 40 17,56 15. 6-pin. Air blow-in relay. 6-pin. Seat adjuster relay. 6-pin.

MSRP $8.75

$6.50

MSRP $8.75

$6.50

14

Receptacle Housing

201-545-50-28

Mercedes-Benz

Notes: NOT FOR SWEDEN

Description: Diode case to fuse box. 2-pin. Comfort switching. 2-pin. Comfort/sport change-over trimmer plug. 2-pin. Trimmer plug ezl. 2-pin. Diodes. 2-pin. Trimmer plug to 007 545 75 28. 2-pin.

View Details

17

Contact Socket

003-545-26-26

Mercedes-Benz

Description: 4.0mm2.

MSRP $3.70

$2.78

MSRP $3.70

$2.78

20

Contact Socket

001-545-44-26

Mercedes-Benz

Notes: NOT FOR SWEDEN

Description: 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.

MSRP $3.40

$2.50

MSRP $3.40

$2.50

23

Receptacle Housing

201-545-26-28

Mercedes-Benz

Notes: NOT FOR SWEDEN

Description: Central electrical system, unipolar. Fuse box "e".

View Details

26

Contact Socket

002-545-30-26

Mercedes-Benz

Notes: NOT FOR SWEDEN

View Details

29

Flat Plug

000-546-43-40

Mercedes-Benz

Notes: NOT FOR SWEDEN

View Details

32

Insulating Sleeve

000-546-08-45-64

Mercedes-Benz

Notes: NOT FOR SWEDEN

View Details

35

Electric Cable

126-540-56-35

Mercedes-Benz

Notes: NO LONGER AVAILABLE

Description: From fuse box to plug connection.

View Details

38

Pin Bushing Housing

014-545-85-28

Mercedes-Benz

Notes: NO LONGER AVAILABLE

View Details

38

Pin Bushing Housing

75450028

Mercedes-Benz

View Details

41

95452128 - Electrical System: Cap for Mercedes-Benz Image

Cap

009-545-21-28

Mercedes-Benz

Description: Back-up lamp cable. To 007 545 00 28, 015 545 49 28. To 006 545 78 28. Fuel gauge sender unit. 4-pole to 015 545 49 28. Quadruple to 009 545 52 28. To 015 545 49 2,. Turn signal and side marker lamps left. To 009 545 52 28 (asd).

MSRP $5.00

$3.75

MSRP $5.00

$3.75

44

Pin Bushing Housing

145456028

Mercedes-Benz

Notes: NO LONGER AVAILABLE

Description: Fuse box.

View Details

62

Wiring Harness

1265408310

Mercedes-Benz

Notes: NO LONGER AVAILABLE

Description: From switch cluster to front and rear door window regulator motors.

View Details

65

Coupling, Mechanical

016-545-43-28

Mercedes-Benz

Description: Rear window roller blind. Tell-tale lamp edw. Backrest adjustment switch. Automatic anti-dazzle with garage dooropener. Fold-away outside rearview mirror switch. Roller blind switch.

View Details

68

Receptacle Housing

014-545-61-28

Mercedes-Benz

Description: Safety switch.

View Details

74

Contact Socket

002-545-99-26

Mercedes-Benz

Description: 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...

MSRP $2.70

$2.00

MSRP $2.70

$2.00

80

Plug Housing

009-545-52-28

Mercedes-Benz

View Details

86

Contact Pin

001-545-38-26

Mercedes-Benz

Description: 4.0 MM. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 4.0Release tool: W220 589 01 99 52. TO 009 545 53 28/56 28. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: R ...

MSRP $2.40

$1.75

MSRP $2.40

$1.75

89

Cable Connector

001-546-59-41

Mercedes-Benz

Description: A-pillar. Front panel pillar. Courtesy lamp to central pillar. Electric window regulator cable harness.

View Details

101

Clamp

004-988-57-78

Mercedes-Benz

Description: Rear door contact branch-off to central pillar. 27.8 x 50.0 mm. Electric cable to side member. 27.8 x 50.0 mm. Window regulator cable harness to side member. 27.8 x 50.0 mm. Electric cable to wheel arch. 27.8 x 50.0 mm. Electric cable to tailgate. 27.8 x 50.0 mm. Plug-socket cable to frame. 27.8 x 50.0 mm. 22,75mm. 27.8 x 50.0 mm.

View Details

110

Bracket

126-545-53-40

Mercedes-Benz

Notes: NO LONGER AVAILABLE

Description: Plug connection.

View Details

116

Bolt And Washer Assembly

914007-008005

Mercedes-Benz

Description: Plug connection. Reinforcement to console m 8x16. Coupler. Striker plate to tunnel m 8x16.

View Details

119

Cable Strap Holder

000-995-60-44

Mercedes-Benz

Description: Hose to body.

MSRP $3.70

$2.75

MSRP $3.70

$2.75

120

Grommet

111-997-02-81

Mercedes-Benz

Description: Cable harness to rear side part. 6mm/18mm.

MSRP $2.70

$2.00

MSRP $2.70

$2.00

122

Cover

126-821-00-36

Mercedes-Benz

Description: Cable protection in front door interior part. Electric cable to rear door interior plate.

View Details

137

Line Connector

000-540-02-69

Mercedes-Benz

Description: Electric cable regulator cable. Stop-light/speed signal. Motor connection,left and right front doors. Bipolar. At bracket. To floor panel in legroom. Cable harness to front door. Electric cable to rear door interior plate. Terminal "58d".

View Details

139

Cable Connector

126-821-01-41

Mercedes-Benz

Description: Electric window regulator to left rear side part.

View Details

140

Screw

007985-004107

Mercedes-Benz

View Details

143

Spring Lock Washer

912004-004102

Mercedes-Benz

Description: Cables to cable connector. At front center stiffening. Blinker & tempomat switches to steering column jacket tube. Cable to resistor. Main cable harness to radiator baffle, right. Starting cable to cable connector.

MSRP $1.40

$1.00

MSRP $1.40

$1.00

146

Electric Motor

001-820-50-42

Mercedes-Benz

Description: Left front door.

View Details

146

Electric Motor

001-820-51-42

Mercedes-Benz

Description: Right front door.

View Details

152

Electric Motor

001-820-63-42

Mercedes-Benz

Description: Right rear side window.

View Details

152

Electric Motor

001-820-62-42

Mercedes-Benz

Description: Left rear side window.

View Details

155

Screw

914114-006010

Mercedes-Benz

Description: M6x14-10.9v. Engine to bracket. Stay to fire wall. Rear backrest to wheelhouse panel. Folding armrest. Electric motor to window regulator.

View Details
